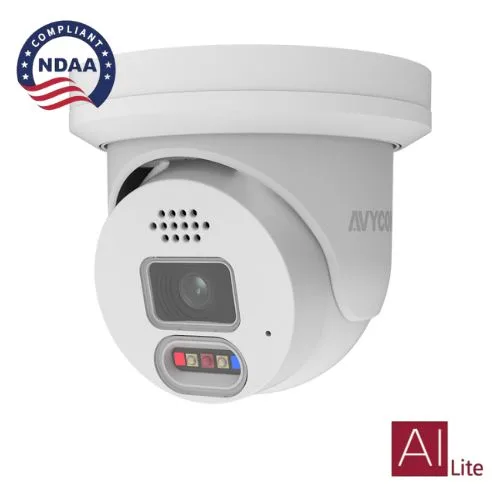

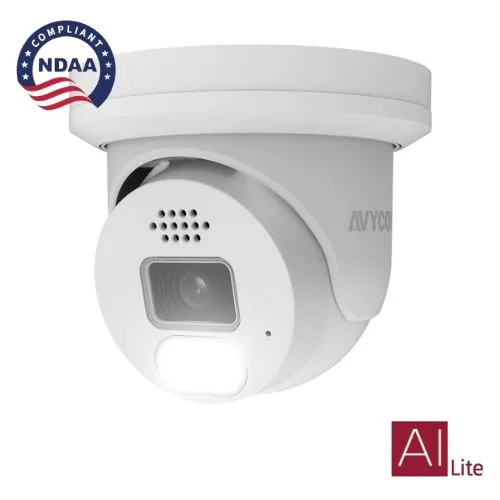

The Avycon AVC-NAE41F28 delivers intelligent protection for your network. Featuring AI-Lite analytics such as intrusion, tripwire, and loitering detection, this 4-megapixel turret camera actively deters intruders through flashing LED lights and audible alerts. Designed for indoor or outdoor use, it supports PoE / 12VDC, microSD recording up to 512 GB, and remote monitoring via AVYCON ONE or CMSONE software — with no monthly fees.
Specifications
-
-
4MP (2560×1440) resolution ensures high-definition image clarity
-
Wide Angle Lens for Maximum Coverage captures expansive areas with a 95° horizontal field of view, minimizing blind spots and ensuring complete scene visibility
-
Full-color night vision (F1.0 lens) captures vivid scenes in darkness
-
Smart Defender AI analytics detect intrusions, tripwire events, and loitering
-
Built-in microphone and speaker allow two-way communication
-
Multiple light options (white, red, blue) for deterrence and signaling
-
H.265 video compression saves bandwidth without compromising quality
-
PoE or DC12V power makes installation simple and flexible
-
IP67-rated metal housing guarantees long-term durability outdoors
-
No Monthly Subscription Remote monitoring by AVYCON ONE (mobile) and AVYCON CMSONE (computer)
both freware -
Installation not included
-
| Category | Details |
|---|---|
| Image Sensor | 1/3″ Progressive CMOS, 4MP (2560×1440) |
| Minimum Illumination | Color: 0.002 Lux @ F1.0; B/W: 0 Lux (IR ON) |
| Lens | 2.8mm Fixed, F1.0 Aperture |
| Field of View | 95° (H) × 51° (V) × 112° (D) |
| Illumination | White / Red / Blue Light, 25m IR Range |
| Video Compression | H.265 / H.264 |
| Frame Rate | Main Stream: 4MP@25fps |
| AI Functions | Intrusion, Tripwire, Loitering, Region Entry/Exit Detection |
| Audio | Built-in Mic & Speaker (2-way) |
| Storage | MicroSD up to 512GB |
| Ingress Protection | IP67 |
| Power | PoE / DC12V, Max 8.3W |
| Material | Metal Casing |
| Dimensions | 100.5 × 87.9mm |
| Weight | 0.68 lb (312g) |
Why Choose AVYCON Smart Defender Cameras?
AVYCON’s Smart Defender line combines AI precision, advanced color imaging, and edge intelligence to create a proactive security ecosystem.
The AVC-NAE41F28 integrates seamlessly into existing IP systems, offering flexible configuration, ONVIF compatibility, and remote access through mobile and desktop apps.
This camera is the perfect choice for IT managers, security professionals, and installers who demand reliability and performance from their surveillance infrastructure.
Official Datasheet
Download AVYCON AVC-NAE41F28 Datasheet (PDF)
Recommended For
• Commercial & industrial surveillance
• Perimeter protection
• Retail & warehouse environments
• Smart monitoring with AI alerts
