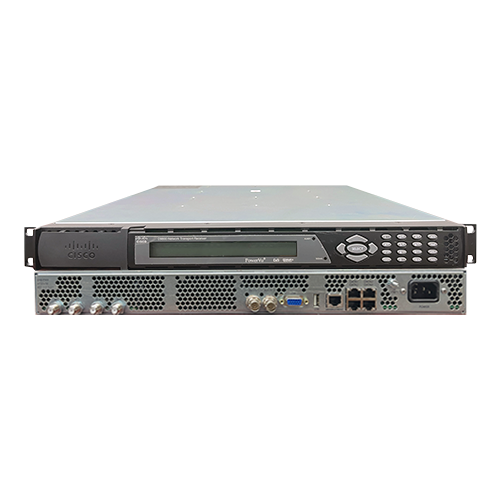

Cisco D9800 Network Transport Receiver media
Model: D9800-MS-MPEGOIP
Brand: Cisco
Condition: Refurbished
The D9800 Network Transport Receiver is a versatile device designed for high-efficiency video decoding and distribution over satellite and IP networks. It supports multiple video standards, including MPEG-2, AVC, and HEVC, and offers single and multi-stream variants for different applications. Key features include support for digital program mapping, high-density transcoding, and advanced security options like PowerVu conditional access. The receiver is ideal for content providers needing flexible, high-performance solutions for video distribution and content protection in both satellite and IP environments.
| Feature | Description |
|---|---|
| System | |
| Standards | MPEG-2 and DVB compatible EN 300 421, EN 300 468 |
| Demodulation | DVB-S QPSK, DVB-S2 QPSK, and 8PSK (If Licensed) |
| Tuner RF Inputs | |
| Number of RF inputs | 4 (default 1 active at a time, or can be licensed as individual tuners) |
| Input level | -25 to -65 dBm per carrier |
| Frequency range | 950 to 2150 MHz |
| Symbol rate range | ● DVB-S: 1.0 to 60 MS/s ● DVB-S2: 1.0 to 45 MS/s |
| Input return loss | ≥ 18 dB (950–2150 MHz) |
| Port-to-port isolation | ≥ 65 dB (70 dB typical) (950–2150 MHz) |
| Input impedance | 75 ohm |
| ASI Input | |
| MPEG-2 transport input | EN50083-9, DVB-ASI coaxial, 188/204-byte packets |
| MPEGoIP Output (Single stream optional, Multi-stream standard) | |
| Physical | RJ-45 |
| Ethernet | 100BASE-T Ethernet and 1000BASE-T Ethernet |
| Output modes | UDP raw, RTP, FEC |
| FEC | FEC based on SMPTE 2022 |
| Rates | Up to 200 Mbps |
| Ethernet Output for MPE Data | |
| Connector | RJ-45, 100/1000BaseT |
| Rates | Up to 10 Mbps |
| Conditional Access | |
| Cisco PowerVu conditional access | DES or DVB |
| DVB descrambling | BISS mode1/E |
| DVB-CI | |
| Interface | 2 CI slots: EN 50221 |
| CA method | Multicrypt, simulcrypt |
| Alarm Output | |
| Programmable relay output | Alarm or configurable to one of the 8 open collector outputs |
| Cue Tone Output | |
| Balanced audio output | -3.0 dBu ±3 dB, 600 ohms |
| Output impedance | < 50 ohms |
| Cue Trigger Outputs | |
| Number of outputs | 8 |
| Type | Open collector |
| Environmental Specifications | |
| Operating temperature | 0–50°C (32–122°F) |
| Storage | -20–70°C (-4–158°F) |
| Chassis Mechanical Specifications | |
| Height | 1.72 in. (4.37 cm) 1RU high, 19 in. EIA rack mountable |
| Width | 17.35 in. (44.07 cm) |
| Depth | 20.25 in. (51.44 cm) |
| Weight | 15 lbs (6.8 kg) for single stream chassis, 22 lbs (10 kg) for multi-stream chassis (approx.) |
| Power | |
| Voltage range | 100V to 240 VAC |
| Line frequency | 50/60 Hz |
| Power consumption | 70W typical for single stream chassis, 82W typical for multi-stream chassis (without LNB) |
| LNB power on satellite input | +13V or +18V at 400 mA maximum |
Table 2. Single stream and decoder specific product specifications
| Feature | Description |
|---|---|
| Analog SD Video Output | |
| Number of channels | 1 |
| Video decompression type | MPEG-2 4:2:0 and MPEG-4 AVC 4:2:0 |
| Video standard | NTSC and PAL B/G/I/D/M/N |
| Maximum video resolution | 720×480 and 576 video output |
| Analog Audio Output | |
| Number of channels | 2 stereo pairs or 4 mono channels and 5.1 channel down-mix 4 stereo pairs or 8 mono channels (with license) |
| Audio decompression | MPEG, Dolby Digital (AC-3), HE-AAC, and Dolby Digital Plus |
| Output level | Balanced output is adjustable at the front panel by ±6.0 dB (ref. 100 kilo ohms) and is factory calibrated to +18 dBu (at full scale). Recommended 600 ohm operation adjustment range is -6 dB to +4 dB. +17 dBu (ref. 600 ohms) at full scale |
| Frequency response | ±0.5 dB, 20 Hz to 20 kHz (ref. 100 kilohms) |
| Total harmonic distortion | < 0.3% at 1 kHz (ref. 100 kilohms) |
| Dynamic range | 85 dB (CCIR average response meter [ARM] weighting) |
| Crosstalk | -110 dB at 1 kHz (typical) |
| Digital SDI-HD Video Output (Optional) | |
| Number of channels | 1 |
| User-selectable output ports | 2 (mirrored or optional simultaneous SD/HD output) |
| Output type | BNC |
| Output format | 3G-SDI, SMPTE-424M (license option) HD-SDI, SMPTE-292M (license option) SDI, SMPTE-259M |
| Embedded audio | 2 audio programs (license option for 4), PCM or pass-through 2 digital audio outputs (license option for 4) (1 stereo channel each) BNC, AES-3id (HW limited to 2), SMPTE 276M |
| Aspect Ratio | |
| Display aspect ratios | 4:3, 16:9 |
| Aspect ratio conversions for down-conversion | 4:3: 16:9 letterbox, 14:9 letterbox, center cutout 16:9: center cutout |
| Aspect ratio conversions for SD programs | 4:3: 16:9 letterbox, 14:9 letterbox, center cutout, none 16:9: Scale to 16:9 |
| VBI | |
| NTSC | ● Lines 10 to 22, fields 1 and 2 ● Line 21 closed captions ● NABTS ● AMOL I and II (Neilsen) ● VITC ● WSS |
| PAL | ● Lines 7 to 22, fields 1 and 2 ● WST ● WSS ● VPS ● VITC |
