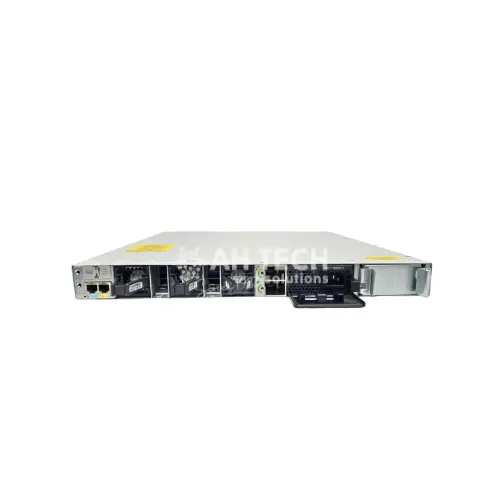

Cisco Catalyst C9300-24T-A – Enterprise-Grade Stackable Access Switch
The Cisco Catalyst C9300-24T-A is a 24-port Gigabit Ethernet data-only switch from Cisco’s flagship Catalyst 9300 Series, purpose-built for enterprise access layer deployments. Powered by Cisco’s UADP 2.0 ASIC and running Cisco IOS XE, it delivers a non-blocking switching capacity of 208 Gbps (expandable to 688 Gbps with stacking) along with a forwarding rate of 154.76 Mpps. Designed for campus networks, branch offices, and data centers, it combines advanced Layer 2/3 features with deep programmability and robust security. One modular uplink slot supports optional 1G, 10G, 25G, or 40G network modules, ensuring long-term investment protection.
Key Features & Benefits
24 x 10/100/1000 RJ-45 Ports (Data Only) – Provides wire-speed Gigabit Ethernet connectivity to end devices; the “T” model is strictly data-only with no PoE circuitry, ideal for server-side or uplink aggregation roles.
208 Gbps Non-Blocking Switching Capacity – Built on the Cisco UADP 2.0 ASIC, ensuring zero packet loss even under peak enterprise workloads, with up to 688 Gbps when stacked.
Cisco StackWise-480 Technology – Stack up to 8 switches as a single logical unit with 480 Gbps of stacking bandwidth for centralized management, resiliency, and simplified operations.
One Modular Uplink Slot – Supports field-replaceable network modules (1G/10G/25G/40G), allowing nondisruptive migration to higher-speed uplinks as network demands grow.
Cisco IOS XE with Full Programmability – Supports NETCONF, RESTCONF, YANG models, Python scripting, and streaming telemetry for complete network automation and integration with Cisco DNA Center.
Advanced Security Suite – Includes MACsec 256-bit encryption, Cisco TrustSec, Secure Boot, Control Plane Policing (CoPP), and hardware-anchored trust via Cisco Trust Anchor module.
SD-Access & Cisco DNA Center Ready – Fully compatible with Software-Defined Access for policy-based segmentation, automation, and network assurance in hybrid cloud environments.

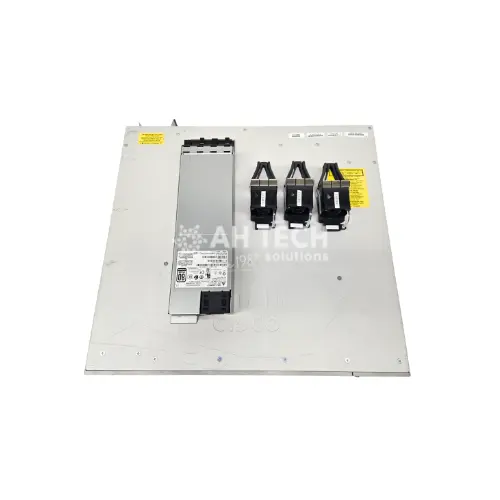

Dual Redundant Power Supply Slots – Ships with one 350W AC power supply; a second PSU slot supports hot-swappable redundancy for maximum availability.
Large Routing & MAC Tables – Supports up to 32,000 MAC addresses, 32,000 IPv4 routes, and 16,000 IPv6 routes, handling the most complex enterprise topologies.
Application Hosting (IOx) – Dedicated CPU/memory resources allow hosting of Docker containers, ThousandEyes agents, and ASAc firewall directly on the switch.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | C9300-24T-A |
| Brand | Cisco |
| Series | Cisco Catalyst 9300 |
| Downlink Ports | 24 x 10/100/1000 Mbps RJ-45 (Data Only, No PoE) |
| Uplink Ports | 1 x Modular Uplink Slot (supports 1G/10G/25G/40G network modules, sold separately) |
| Switching Capacity | 208 Gbps (standalone) / 688 Gbps (with stacking) |
| Forwarding Rate | 154.76 Mpps (511.90 Mpps with stacking) |
| Stacking Technology | Cisco StackWise-480 (up to 480 Gbps stacking bandwidth, up to 8 members) |
| MAC Address Table | 32,000 entries |
| IPv4 Routing Table | 32,000 entries |
| IPv6 Routing Table | 16,000 entries |
| VLANs Supported | Up to 4,094 |
| ASIC | Cisco UADP 2.0 |
| Operating System | Cisco IOS XE (16.5.1a or later) |
| Layer Support | Layer 2 / Layer 3 (full routing: OSPF, EIGRP, BGP, IS-IS, VRF-Lite) |
| Security Features | MACsec-256, TrustSec, Secure Boot, CoPP, Trust Anchor Module |
| Management | Cisco DNA Center, CLI, Web UI, SNMP, NETCONF, RESTCONF |
| Power Supply (Default) | 1 x 350W AC (PWR-C1-350WAC); second slot for redundancy |
| Power Consumption (Max) | ~95W |
| Form Factor | 1U Rack-Mountable |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 in. (4.4 x 44.5 x 44.5 cm) |
| Weight | 16.03 lbs (7.27 kg) |
| MTBF | ~2,039,167 hours |
| PoE Support | No (Data Only) |
| Condition | Refurbished |
Official Datasheet
Download the official Cisco Catalyst 9300 Series datasheet here
