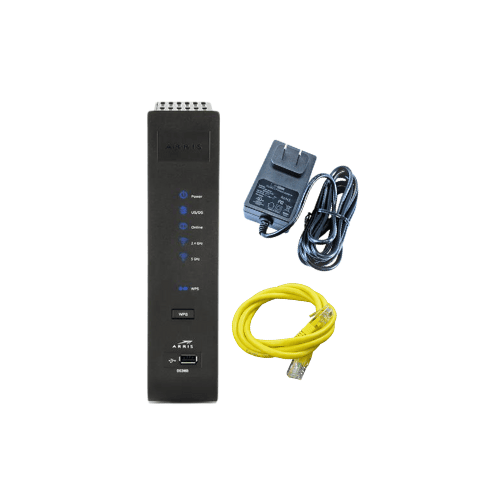

Arris DG2460A Dual-Band DOCSIS 3.0 Cable Modem

Arris DG2460A Dual-Band DOCSIS 3.0 Cable Modem

Manufacturer Part Number: DG2460A
Brand: Arris
Condition: Refurbished
90-Day Warranty

The DG2460 with its superior 802.11ac Dual Band Wireless radios, can deliver this performance while also offering improvements in home coverage above that of other models. This feature-packed unit is intended to serve as the hub of the subscribers network, connecting all IP capable devices (Internet, Data, Voice and Video) throughout the customers premises.

The DG2460 distinguishes itself with capabilities to minimize these support needs. Multiple provisioning methods (SNMP, Configuration File, Remote WebGUI access, TFTP, and TR-069/181) allow custom designed setups to be applied to monitor the end user more efficiently. Multiple remote access levels (User and Technician) also allow more ease and flexibility for manual
configuration and control.

Specifications:

DOCSIS Version: DOCSIS 3.0 compliant

Channel Bonding:

Downstream: Up to 24 bonded channels
Upstream: Up to 8 bonded channels
Downstream Data Rate: Up to 960 Mbps

Upstream Data Rate: Up to 240 Mbps

Processor:

1.2 GHz Intel Atom Core Application Processor
32-bit Data Architecture for maximum speeds

Wireless:

Dual-band WiFi: Supports 2.4 GHz 802.11n and 5 GHz 802.11ac
WiFi Speed: Up to 1750 Mbps
3×3 MIMO: Three transmit and three receive antennas for better coverage

Interfaces:

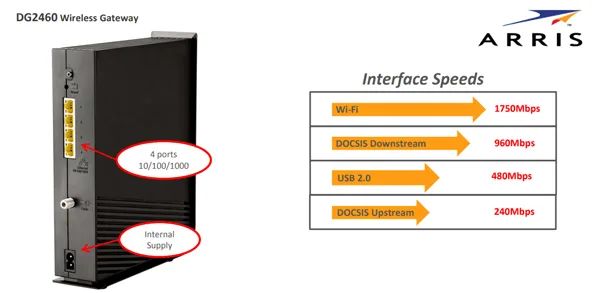

4 x Gigabit Ethernet (RJ-45) ports
1 x USB 2.0 Host Port
Power Supply: Internal, 115/220 VAC, 50/60 Hz

Physical Dimensions:

Size: 9.25 x 7.5 x 2.25 inches
Weight: 1.4 lbs

Operating Environment:

Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 5% to 85% (non-condensing)

Additional Features:

Full Capture Bandwidth Tuner with Spectrum Analyzer
LED Indicators for power, US/DS, online status, 2.4 GHz, 5 GHz, and WP

ARRIS DG2460 Cable Gateway – Data Sheet
